Arizona Air Salvage

Highly desirable six cylinder engine

Liquid cooled

Non Prop Strike engine

Ram

$43,250.00   O.B.O

Power plant:

Continental

Left hand position

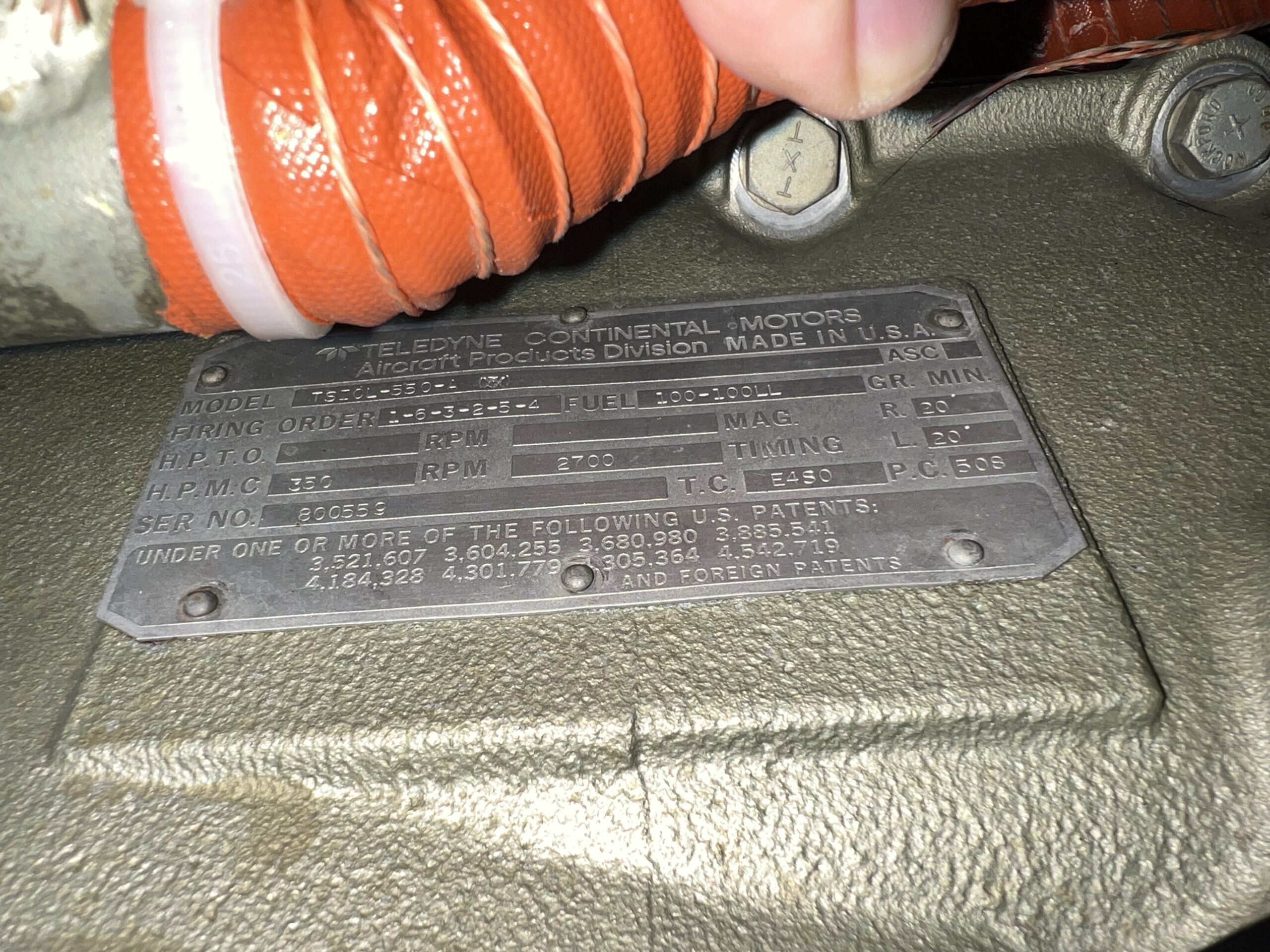

TSIOL-550-A

Series V

350 H.P.

Power plant has 1568.3 SMOH

TBO @2,000 hours

S/N 800560

7th stud heavy case

Last compression’s #1) 75/80, #2) 74/80, #3) 76/80, #4) 74/80, #5) 75/80, and #6) 76/80.

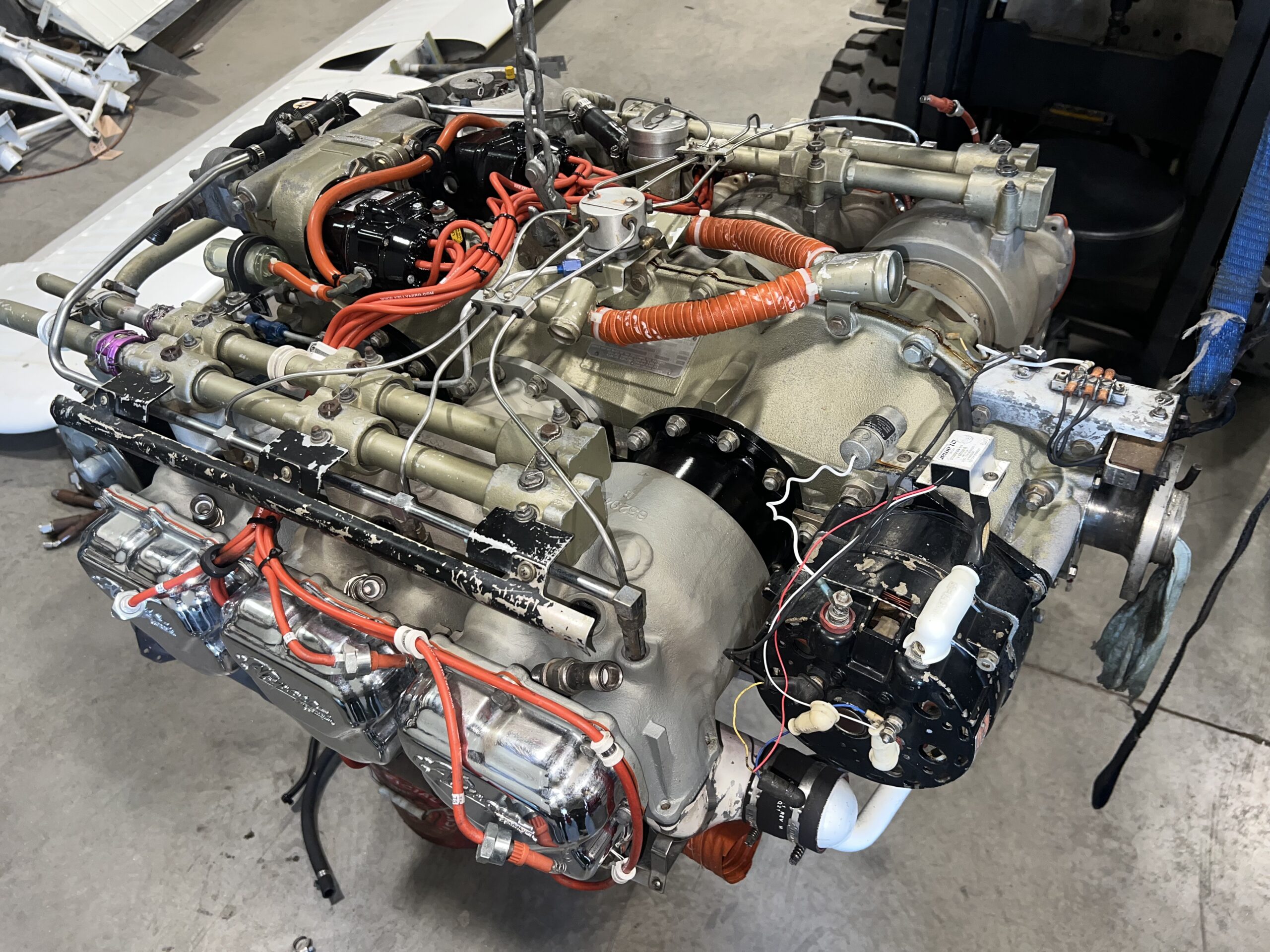

Selling engine firewall forward with all accessories and turbo

Crank Flange dial out .000 non prop strike.

Included with sale:

Baffling

VAR crankshaft

ECI crankcase

Ram balanced crankshaft

Liquid coolant system

Turbo charger assy.

Tach generator

Ram balanced rod set

Fuel servo

Ram fuel nozzles

Ram cam

Fuel spider

Ram nickel cylinders

Fuel pump

Oil pump

Magnetos & harness

Oil cooler

Intake

Oil sump

Starter

Alternator

Prop Governor

Previous Log Entries:

03/17/2025

I certify this

Engine has been inspected in accordance with a 100HR.

Inspection and has been determined to be in an airworthy condition. 207.6 ENGINE TT 3392.5 ENGINE SMOH: 1538.7 WORK ORDER # 6046

03/17/2025

On above referenced engine, removed all cowling for 100 Hour/Annual Inspection. Cleaned and gapped spark plugs. Drained oil, installed new oil filter and refilled engine with X/C 20W-50 oil. Checked magneto timing. Inspected plug harness and all engine electrical. Checked all engine controls for movement and attach points. Inspected intake and exhaust system, condition and integrity of all engine accessories. Inspected engine mount, all baffles and cowling. Inspected prop, spinner and bulkhead. Inspected all fuel, oil and hydraulic lines and fittings. Ran compression check and readings were: #1) 75/80, #2) 74/80, #3) 76/80, #4) 74/80, #5) 75/80, and #6) 76/80. Installed one serviceable bulkhead fillet. Saftied spinner bulkhead mount screws. Saftied all EGT probes. Repaired exhaust heat shields. Installed new rocker cover gasket for all cylinders. Installed new coolant tank servicing placard. Installed new left and right magneto gaskets and timed to engine. Installed new garloc seal per hydraulic pump mount pad. Removed and reinstalled wastegate after installing new actuator seal kit. Installed new Rosan exhausts studs for #4-cylinder. Repaired #2 lower spark plug lead. Performed fuel system set-up per RAM Specs. Removed and reinstalled coolant tank after weld repair by RAM Aircraft. C/W A.D. 2000-01-16 per paragraph’s (b), (c), (d) and (e). ((See airframe log.) C/W A.D 84-26-02 per installation of new engine air filter, due each 300 hours per RAM. All A.D.’s researched through biweekly 2025-05. (See A.D. listing for all current and future compliance times.) Above work done in accordance with Continental and Cessna 414A Service Manuals and Air Impressions, Inc. 100 Hour/Annual Checklist. Engine ground run-up leak checked good and approved for return to service. Pertinent details are on file under work order #6046.

03/04/2024

Changed oil and filter on Left Engine with 12 quarts of X/C20W50 engine oil and one AA48108-2 oil filter. No sample at this time. I certify that the maintenance identified above was accomplished in accordance with Cessna Maintenance Manual and is approved for return to service.

We will email or text more log book entries upon request.

Engine monitor probes and transducers not included with this sale. Ask us about the right hand engine and twin dual engine monitor selling in separate listing.

Engine perfect for rebuild or keep as spare. Engine and turbo assy. being stored in our hangar free from elements and weather.

Selling engine as removed with no warranty or guarantee expressed or implied.

We will ship engine in crate if buyer pays shipping. Contact us on the other components and avionics we have available for this Cessna 414A Chancellor.

Buyer is to determine item to be airworthy and to comply with all applicable FAR’s when installing this on the aircraft. Seller assumes no liability.

We will gladly discuss reasonable offers, email or text log entries upon request. If you have any questions feel free to let us know.
